Features:-

>Built-in AKM DAC Chipset.

>Bass & Treble EQ Settings.

>Supports Bluetooth Signal Input.

>High-definition Bluetooth codecs support(LDAC, AptX HD, AptX, AAC, SBC).

>High-Power Merus Class D Speaker Output.

>High-Power Headphone Output.

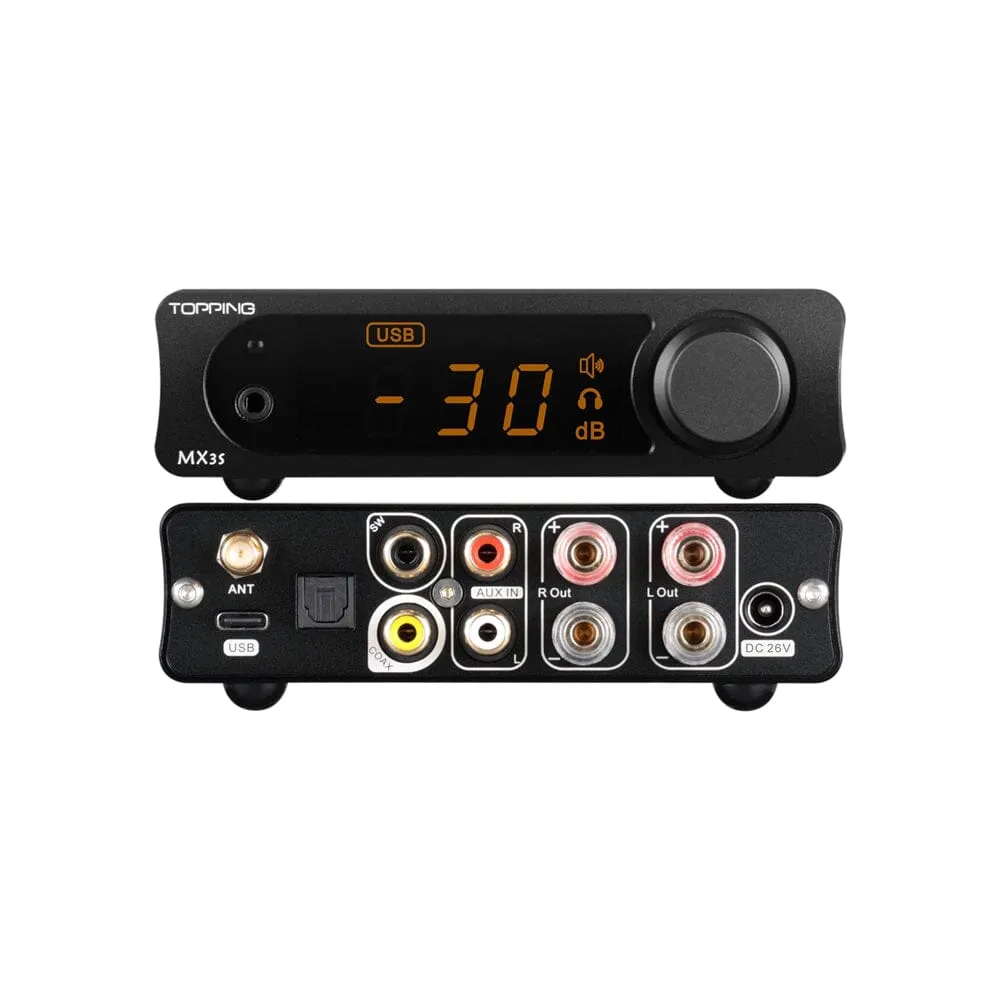

>Digital USB, Optical, & Coaxial Inputs.

>RCA Aux Input.

>Built-in Sub-Woofer Output.

>Automatic on/off function.

>Enhanced Performance with Ultra-Low Distortion & High SNR.

>Two-Level Gain Settings.

>Built-in OLED Display Screen.

Technical Specifications:-

>Supported Decoding: Up to 24-Bit/192kHz PCM.

>THD N: <0.003%.

>SNR: 115dB.

>Gain: 2dB(Low-gain), 14.8dB(High-gain).

>Noise: <2.0uVrms(Low-gain), <7.0uVrms(High-Gain).

>Output Power: 700mWx2@32Ω(Headphone Output).

>Speaker Output SNR: 110dB.

>Speaker Output Noise: <60uVrms(Low-gain), <100uVrms(High-gain).

>Speaker Output Power: 62Wx2 @ 4Ω.



---SpecificationsSplit---

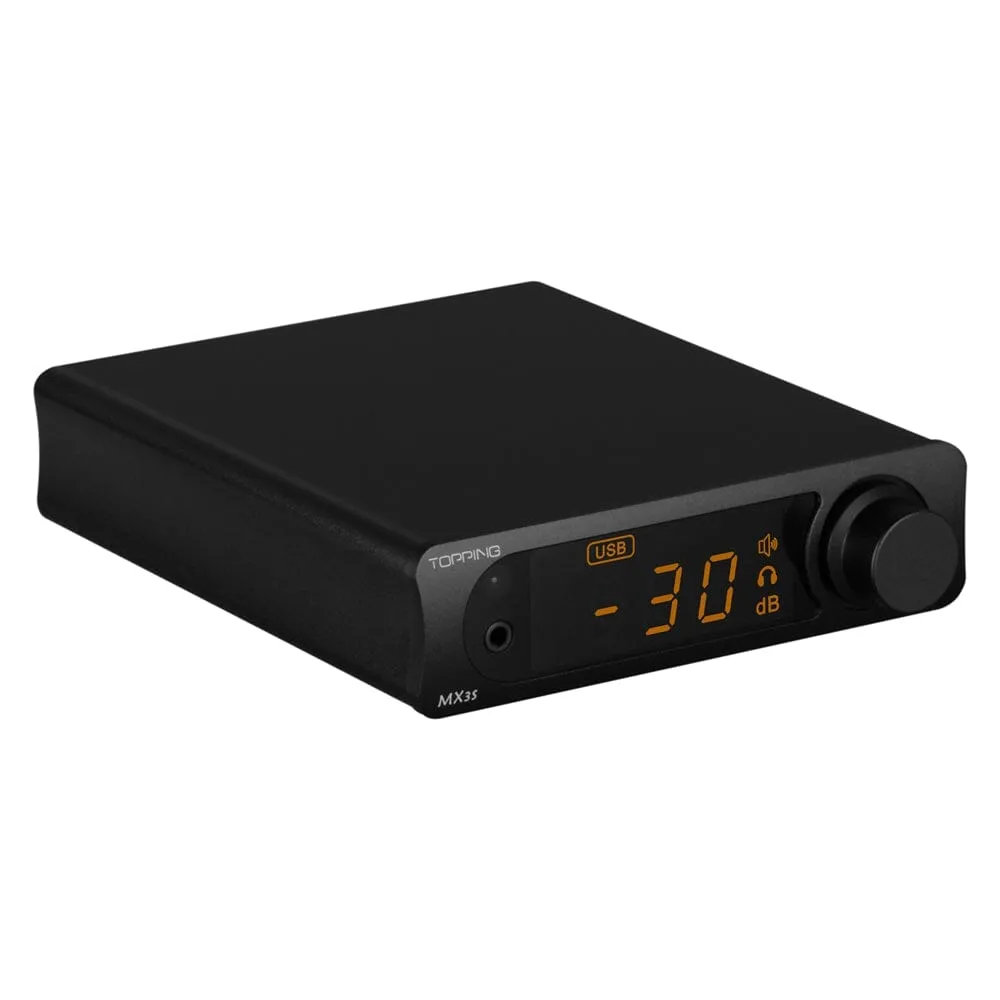

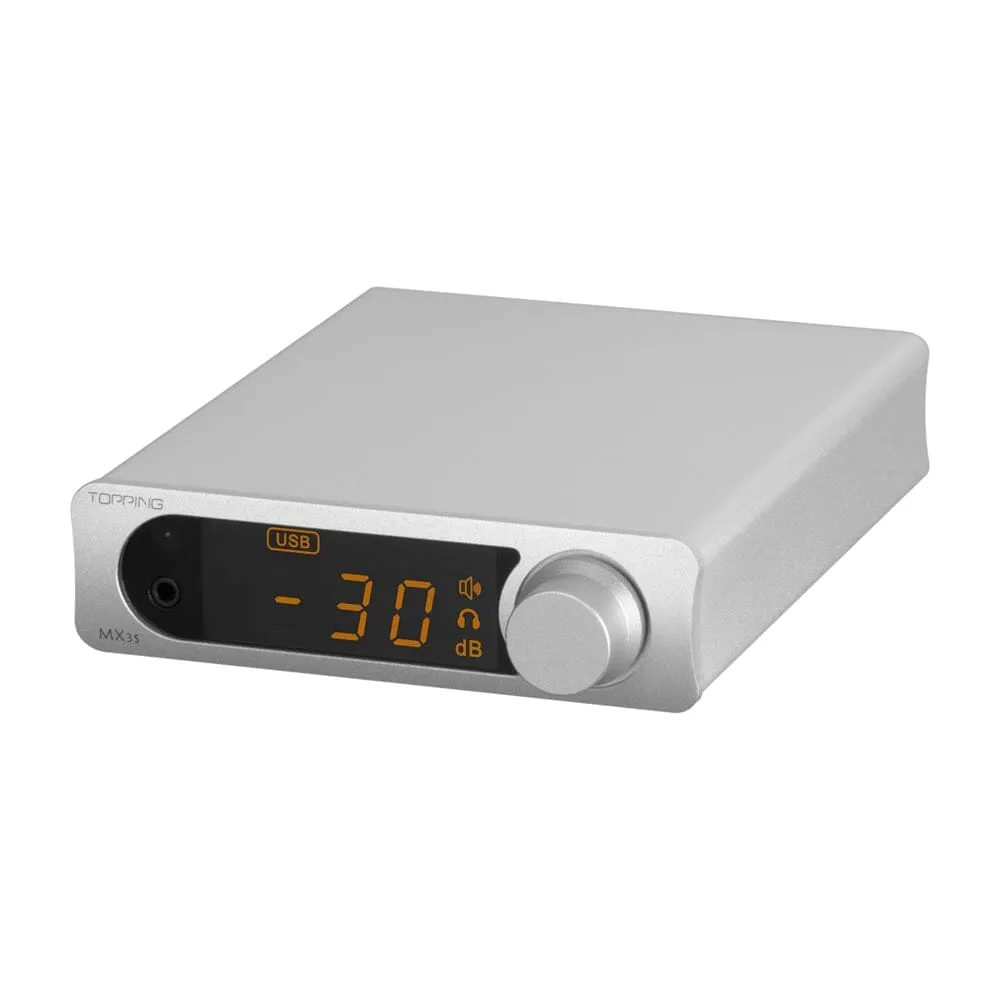

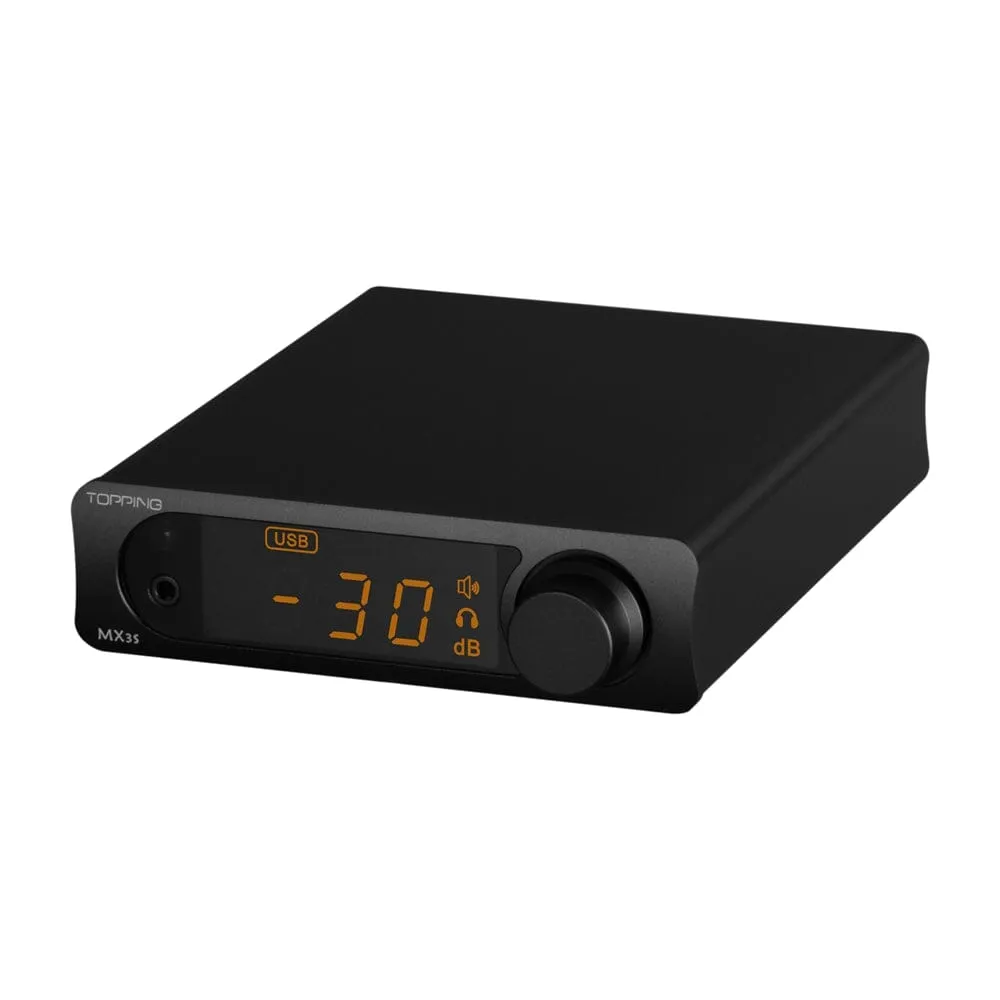

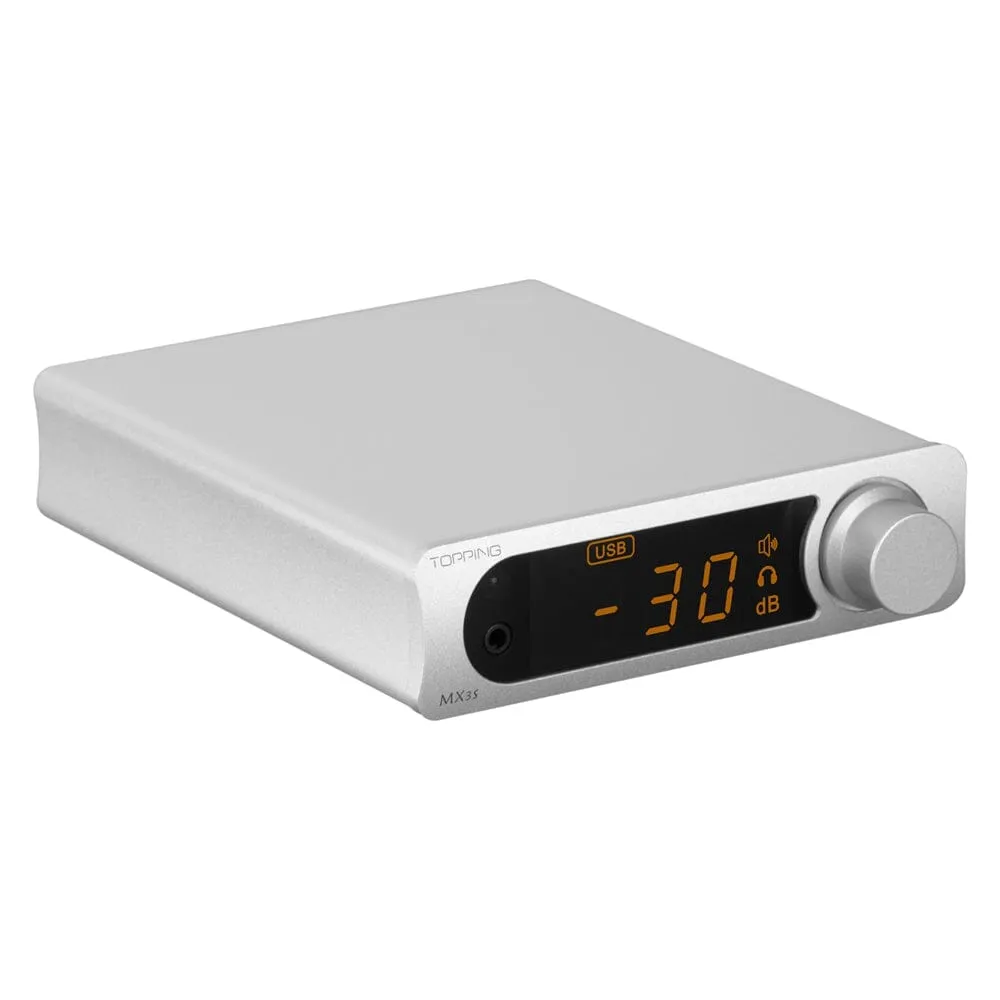

Topping MX3S is an upgrade to the classic MX3 all-in-one desktop solution for audio enthusiasts. It’s an ideal device for audiophiles looking to get a one-device compact solution for everything. The MX3S is a high-performance audio decoder, it houses a Merus Class D power amp chipset for your passive speakers, and it also has a high-power amplification circuit for your headphones. MX3S supports everything as a source from a USB input from a laptop/pc to digital Coaxial and Optical inputs from CD players and other devices and even supports high-quality Wireless Bluetooth input. The Topping MX3s packs an outstanding performance in a super compact form factor!!

High-Resolution Audio Signal Decoding With Built-in AKM DAC:-

Topping has featured a high-performance AKM DAC chip on the MX3S. It enables decoding for high-resolution audio signals supporting up to 24-bit/192kHz bitrate audio signals. It decodes them and provides a rich, clean, smooth output for the listeners.

High-Performance Bluetooth Connectivity With Qualcomm’s Bluetooth Processor:-

Topping MX3S houses Qualcomm’s advanced QCC3040 Bluetooth Chipset. It provides high-definition Bluetooth input with support for most codecs including LDAC, AptX HD, AptX, AAC, and SBC.

Compact Size High-Power Output:-

With Merus Class D power amplification chipset, the Topping MX3S is a mighty little device. It packs a powerful sound performance delivering up to 62W of clean output per channel for speakers at 4Ω of load. It can drive most bookshelf speakers with ease. The MX3S also houses a sub-woofer output allowing the user to create a 2.1ch setup.

High-Power Headphone Output:-

Topping MX3S is a device that can act as a one-point solution for all your high-resolution audio requirements. Along with the powerful speaker amp, the device also houses a high-power headphone amplifier. It produces a clean and accurate output with low distortion and clean background. You get up to 700mW of clean power, which is adequate to drive most headphones in the market. With two-level gain modes, you will be able to pair your highly sensitive IEMs as well as high-power requiring headphones with the MX3S.

Built-In EQ Function:-

Topping MX3S has got a built-in eq function that allows the users to adjust the Bass and Treble response within a range of -10dB to 10dB. This gives full control in the hands of the user, they can easily adjust the output to their liking.

Automatic On/Off Function:-

Topping MX3S supports an automatic on/off function on digital inputs. Once the device detects an input signal it automatically turns on. Once the signal is not received for a minute, the device automatically enters standby mode.
