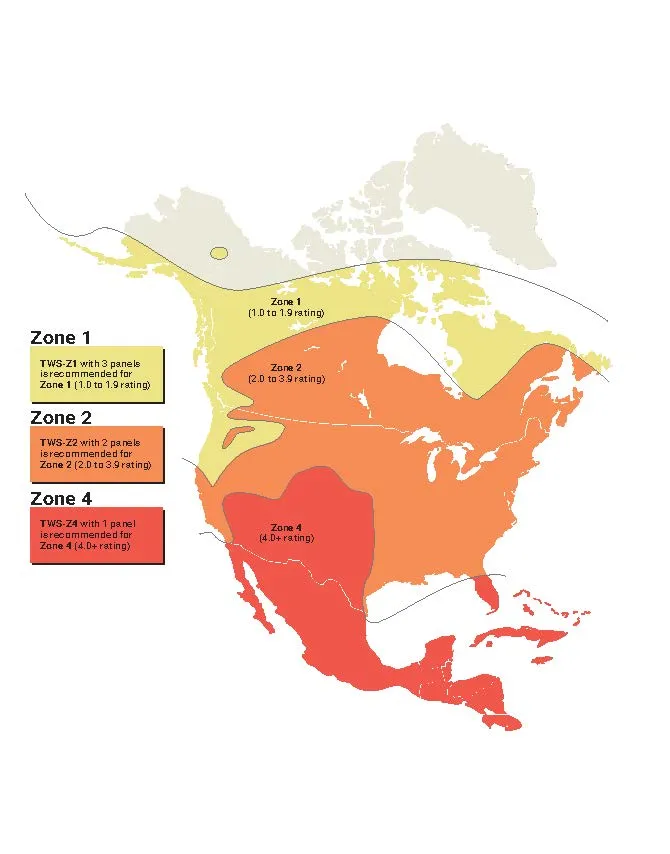

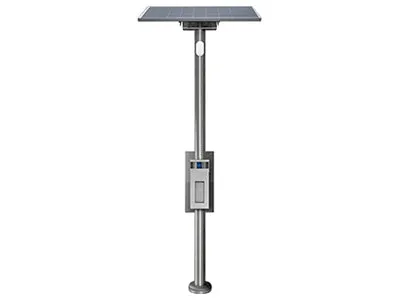

The TWS-Z1 is a Solar Tower with Hooded Emergency Wall Box with 3 solar panels for zones rated 1.0-1.9, direct burial mounted. The solar tower can be used in locations where running wire is a challenge or impossible. The tower is made by Sun Surveillance and includes an Aiphone WB-HE wall box for the Aiphone IX Series emergency call station. The tower is also equipped with batteries to provide power to the intercom and beacon/strobe light and a solar panel to charge the batteries. A Ubiquiti wireless access point is provided to supply network connectivity to the tower.
Compatible Aiphone IX Series emergency stations: IX-DVF-2RA, IX-DVF-RA , IX-SSA-2RA, & IX-SSA-RA.
FEATURES
- Stand-alone tower
- Solar panel and batteries for power
- Ubiquiti wireless point to point for network connectivity
- Beacon / Strobe light on top of WB-HE
- Red EMERGENCY signage on sides of WB-HE
SPECS
Material: Aluminum tower with 5052 aircraft grade aluminum electrical enclosure
Solar Panel: 160W 12V
Power for Intercom: 24V DC supplied from batteries
Wireless: Ubiquiti Loco5AC 5GHz, 450 Mbps
(Requires line of sight for connectivity)
Battery Bank: 12 VDC 220AH
Temp Rating: -40° ~ 140° F (-40° ~ 60°C)
Dimensions Tower: 11' H x 6" W
Solar Panel: 58-⅓" W x 26-½" D x 1-⅜" D
