Product Details
＋

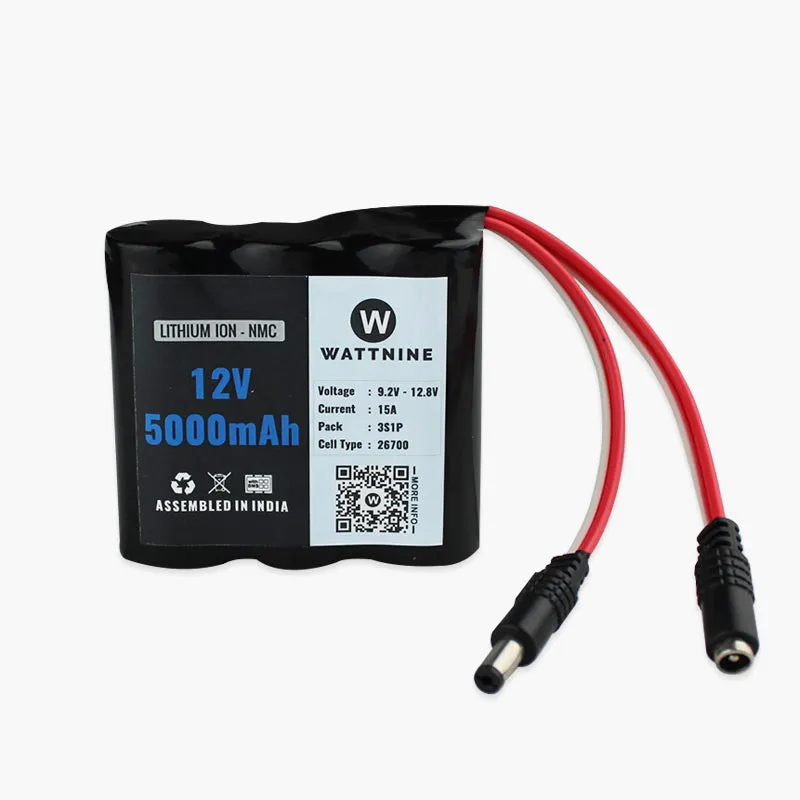

This 12V 5Ah Battery Pack is rated for 11.1V 5Ah (5000 mAh). It is built using 26700 lithium NMC cells in a 3S1P configuration. The pack is tested to provide 5Ah at 5A discharge and can be charged using a 2.5A 12.6V Lithium charger. It also has a built-in BMS which provides over-charge, over-discharge, and short circuit protection.
Recommended Charger - Charging Time
- - 3Hrs 30Min.
- -2Hrs 30Min.
- -1Hr 30MIn.
Specification
- Charging Voltage- 12.6V
- Charging Current- 2.5A
- Nominal Pack Voltage- 11.1V
- Discharge Current- Tested for 3A, 5A, 8A, 10A
- Max Discharge Current - 15A
Terminals:
- DC Male-Female Connector for Charging/Discharging
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
